HPP Models

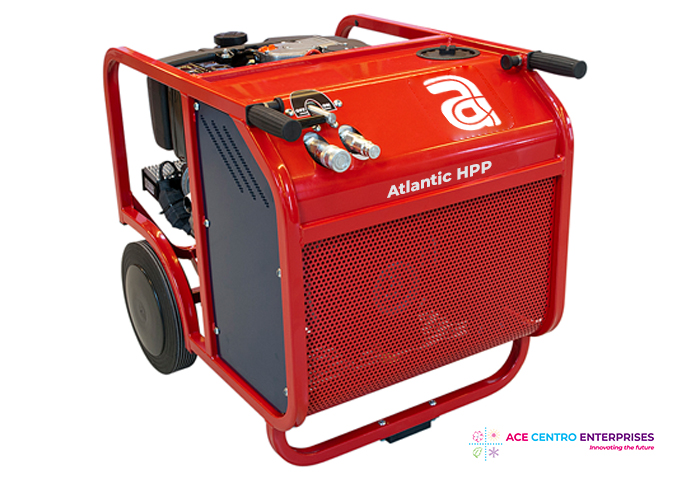

ATLANTIC POWER PACKS

Quote Now Download Brochure

The Atlantic HPP range of industrial hydraulic power packs works well with high-performance diamond tools for drilling and cutting such as cut-off saws, diamond chain saws, ring saws, submersible pumps, rock drills, core drills and other equipment. The availability of wide and solid wheels makes it highly portable and allows working in remote site conditions.



Technical Specification

HSP Models HPP D-30 HPP P-40 HPP E-40
Oil Flow 1 x 20 – 30 lpm 1 x 20 – 40 lpm 1 x 30 lpm
Max. Pressure 150 bar 160 bar 160 bar
Engine Kohler 11 HP diesel Vanguard 18 HP Gasoline 11 KW 25A(30 lpm)
Starter Recoil and electric Recoil and electric Electric
Noise level 1m LPA dB 93 dB 89 dB 89 dB
Noise level 1m LWA dB 105 dB 101 dB 98 dB
Dimensions 805 x 625 x 695 mm 842 x 600 x 688 mm 805 x 625 x 695 mm
Weight 114 kg 108 kg 128 kg
